Waste Water Treatment Plant



APPLICATION:

The treatment of the sample taken from the waste water is carried out in the laboratory, the efficiency to be taken from the treatment at the optimum level is determined. The sludge formed after the treatment is removed by various methods.

Equipment Used:

Fast / Slow Mixer

Static Mixer

flocculator

Chemical Preparation and Dosing System

DOLPHIN Chemical Package Treatment System

Chemical treatment

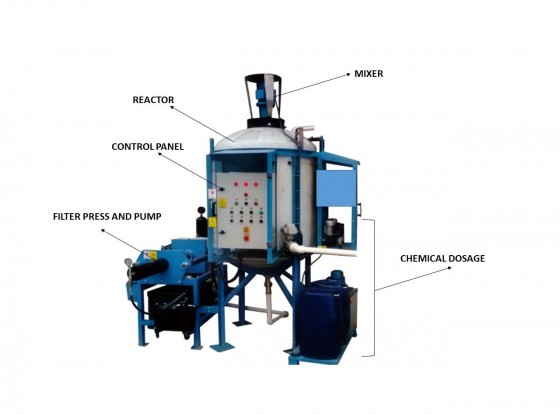

DOLPHIN MINI (up to 30m3/day capacity);

In this system, which works intermittently, the wastewater is taken to the reactor, treated and discharged. The cycle is repeated until all available wastewater is treated.

Units:

Reaction Tank

Fast / Slow Mixer

Chemical Preparation and Dosing System

Mud Pump

Mud Tank

Filterpress Pump

filterpress

Consists of Electrical Panel and automation units

DOLPHIN EXTRA Series (up to 100m3/hr) ;
It is recommended for businesses with more wastewater. In this system, which operates with a continuous flow, the wastewater supply is uninterrupted. While the wastewater is fed to the system on the one hand, there is a continuous treated water outlet at the outlet. Sludge dewatering system is supplied separately for treatment sludge in DOLPHIN EXTRA Series.

Units:

·       Balancing Tank

·       Waste Water Pumping Pump-1

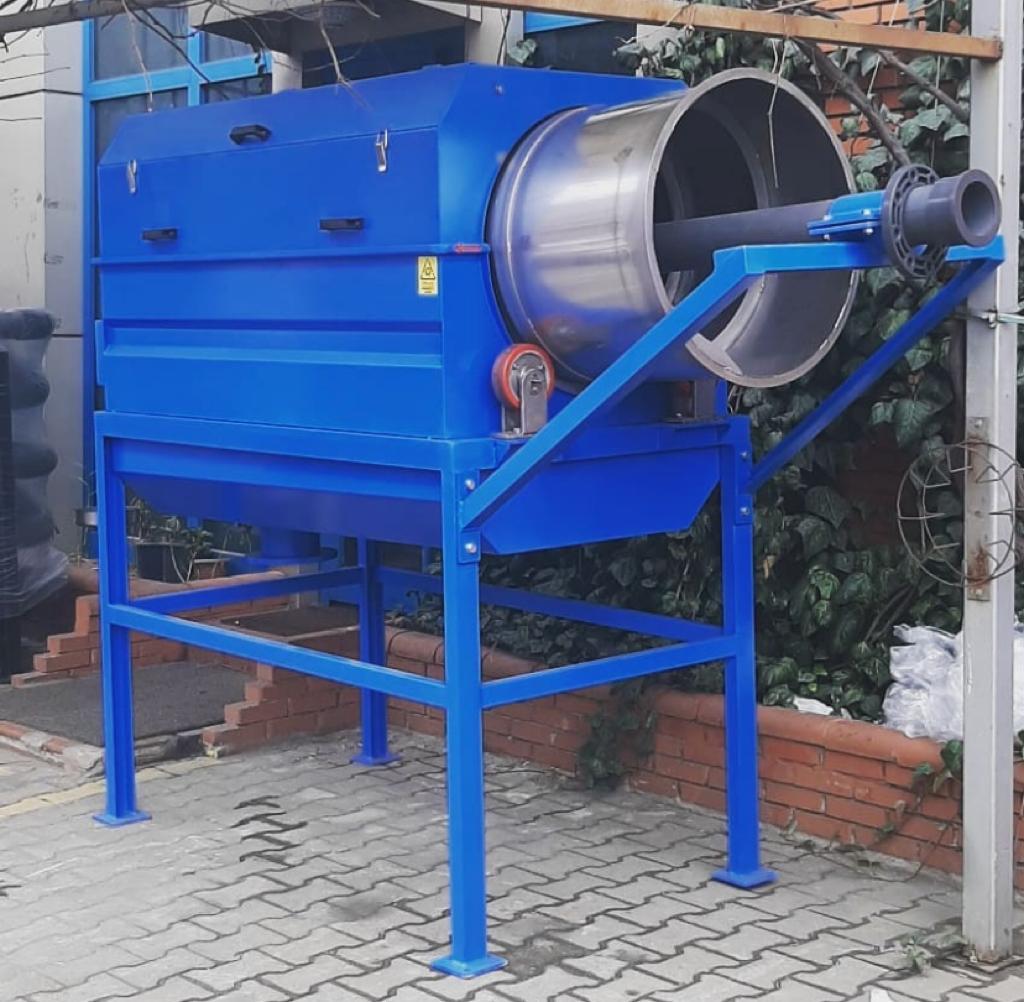

·       Drum Sieve

·       Waste Water Pumping Pump-2

·       Floculator and measurement control instruments

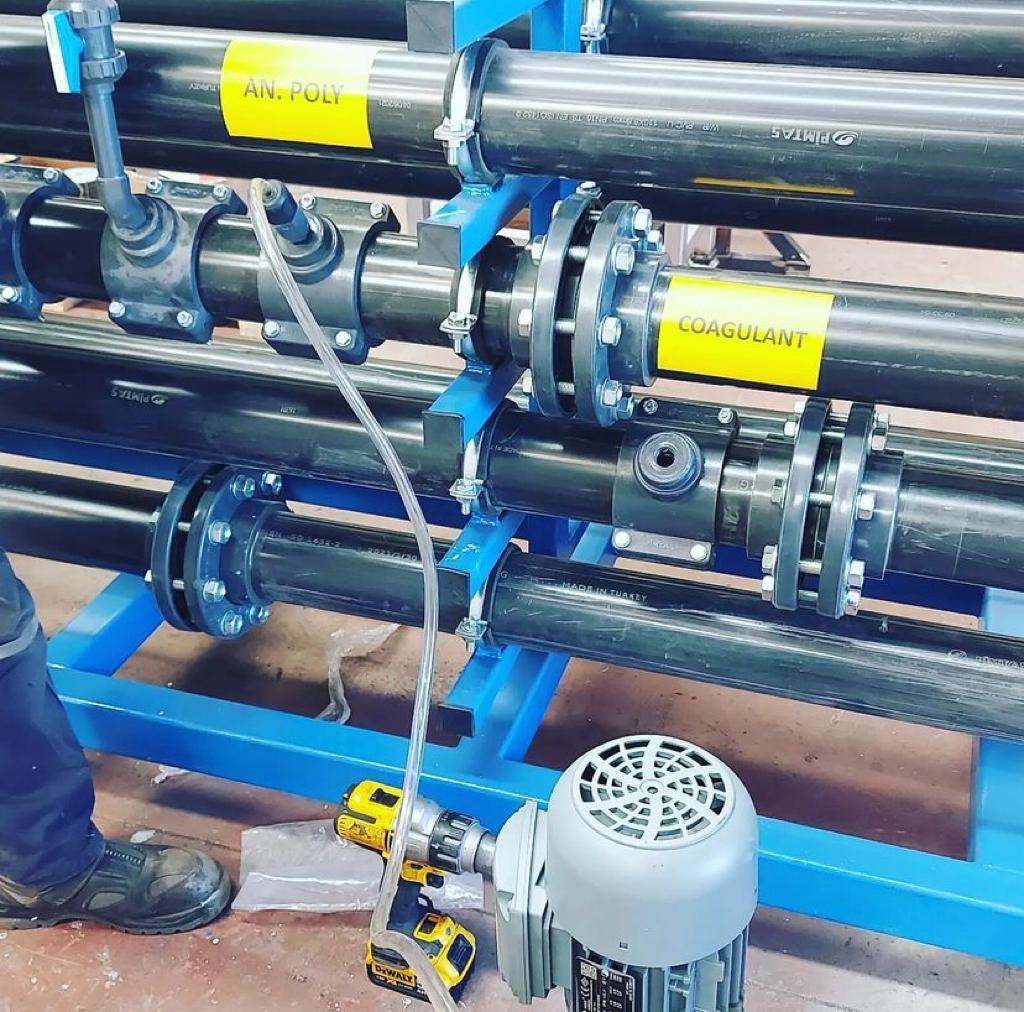

·       Chemical Preparation and Dosing System-1

·       Chemical Preparation and Dosing System -2

·       Chemical Preparation and Dosing System -3

·       Lamella Separator

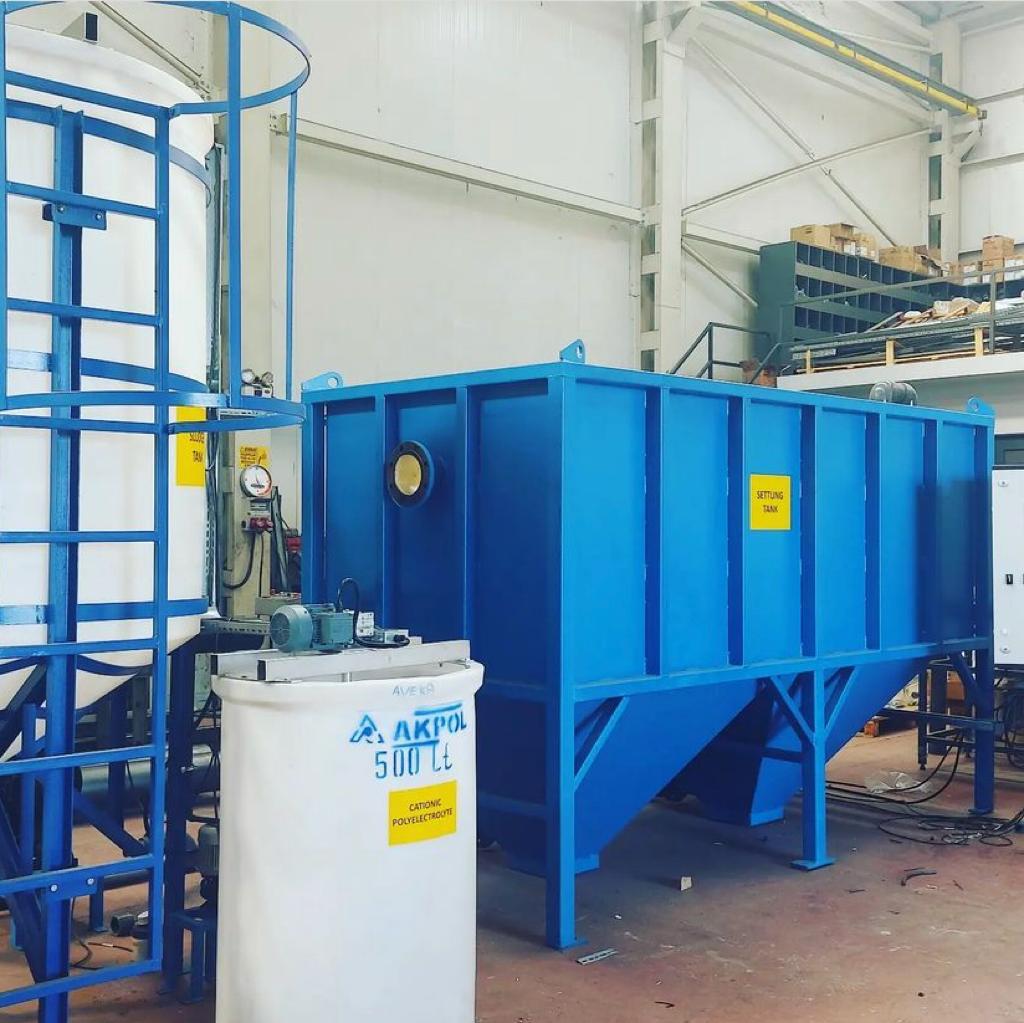

·       Settlement Tank

·       Mud Pump

·       Sludge Tank (additional)

·       Sludge Mixer (additional)

·       Filterpress Pump (additional)

·       Filterpress (additional)

·       Electrical Panel and automation
